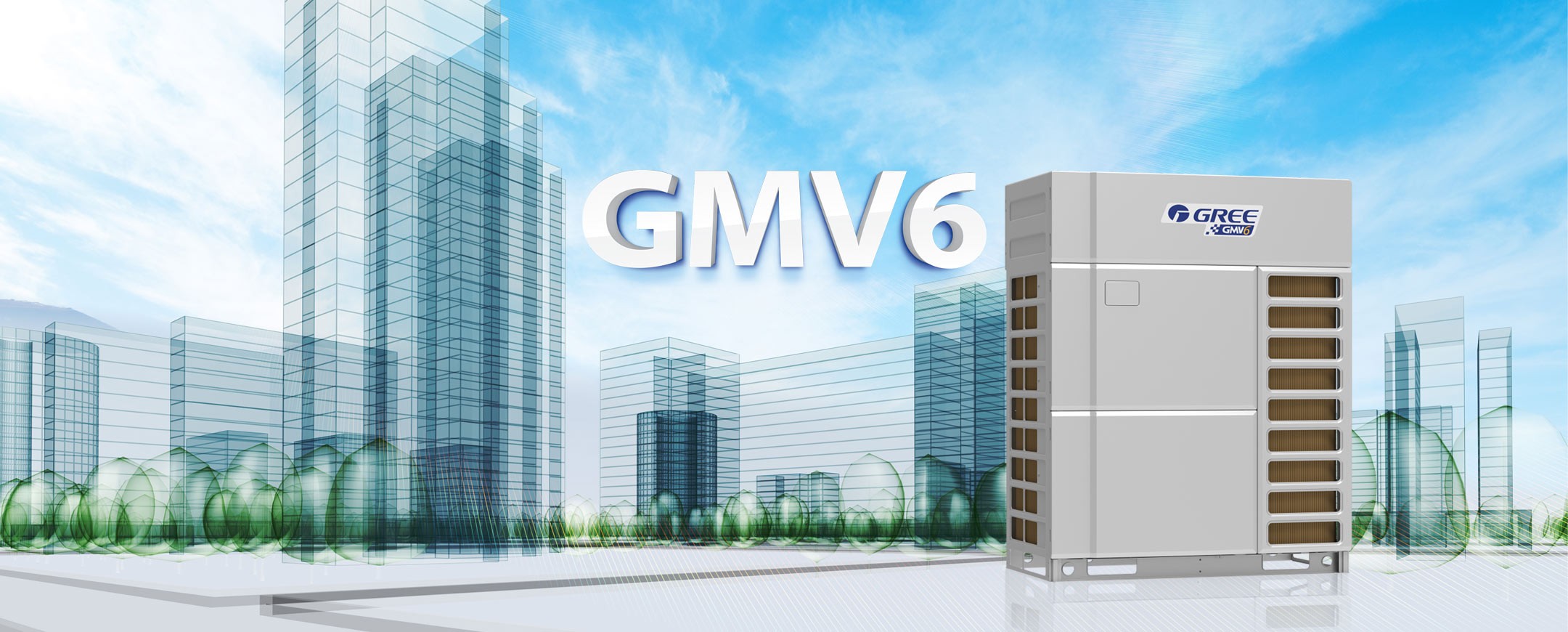

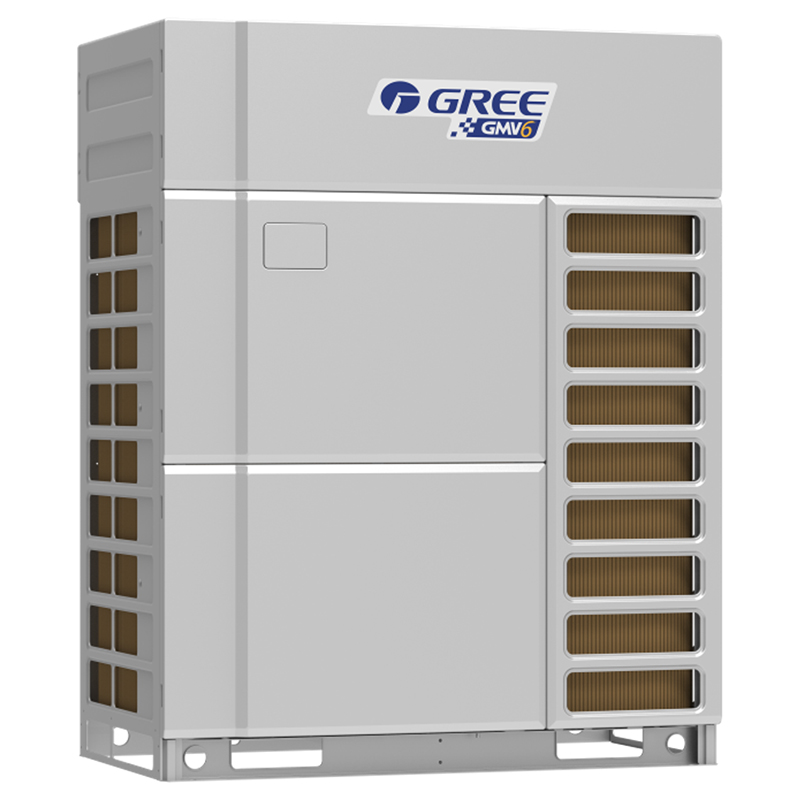

Gree GMV6 VRF System

Modular Inverter VRF System

Gree’s all-new generation GMV6 modular inverter VRF system is the result of constant improvement by the Gree R + D team.

The heart of the unit is an Economised Vapor Injected Scroll compressor coupled with the new G-type heat exchanger with double zones and a high-efficiency refrigerant flow path. This reduces the unit’s overall footprint while increasing the heat exchange area and improving the heat exchange efficiency and, thus, overall efficiency.

The Gree GMV6 VRF system employs multi-VRF CAN+ communication technology, offering intelligent and efficient control with ultra-quick response times for up to 80 indoor units.

The new Gree GMV6 VRF system is excellent in all aspects of energy conservation, comfort, and stability. It can work in a wide temperature range, -30ºC~52ºC. There are nine individual outdoor units, and they can be connected to give a maximum capacity of 272kW.

ENQUIRE NOW

Key Features

Wide Operation Range

-33°C - 55°C stable operation to provide users with comfortable environment in both cold and hot weather, operating ambient temperature for cooling can be as low as -15°C.

Stable and Reliable Operation

GMV6 adopts CAN+ communication, multiple oil circuits control and other technologies which greatly improve the stability and reliability of the unit.

Clean and Healthy Fresh Air

Fresh air system satisfies multiple indoor fresh air supply demands.

Quiet and Comfortable Experience

GMV6 adopts multiple professional noise-reduction technologies to improve the operation of the unit and create a quiet and comfortable environment.

Flexible Engineering Design

Ultra-long connection pipes, convenient maintenance, and other designs are adopted. The unit's strong engineering adaptability satisfies various engineering demands.

Intelligent Control and Management

Intelligent sensing function control, 360° panoramic temperature field identification, high precision of temperature field identification, achieving cold air prevention and warm air surrounding; multiple intelligent control, more well-proportioned temperature field, more energy-saving operation.

Wide Operation Range

-33°C - 55°C stable operation to provide users with comfortable environment in both cold and hot weather, operating ambient temperature for cooling can be as low as -15°C.

Stable and Reliable Operation

GMV6 adopts CAN+ communication, multiple oil circuits control and other technologies which greatly improve the stability and reliability of the unit.

Clean and Healthy Fresh Air

Fresh air system satisfies multiple indoor fresh air supply demands.

Quiet and Comfortable Experience

GMV6 adopts multiple professional noise-reduction technologies to improve the operation of the unit and create a quiet and comfortable environment.

Flexible Engineering Design

Ultra-long connection pipes, convenient maintenance, and other designs are adopted. The unit's strong engineering adaptability satisfies various engineering demands.

Intelligent Control and Management

Intelligent sensing function control, 360° panoramic temperature field identification, high precision of temperature field identification, achieving cold air prevention and warm air surrounding; multiple intelligent control, more well-proportioned temperature field, more energy-saving operation.

Smart Era

Gree’s six-generation GMV is the accumulation of 33 years of producing world-class air conditioners and heat pumps. GMV6 sits in the Smart Era of Gree innovation. Built with all DC Inverter technology, it offers high efficiency, large air volumes, multiple prevention technologies, CAN+ communication, and intelligent control with clean and healthy air. The Gree AU team supports it with design, training, commissioning, and after-sales support. For more information, contact Gree AU today.

Smart Era

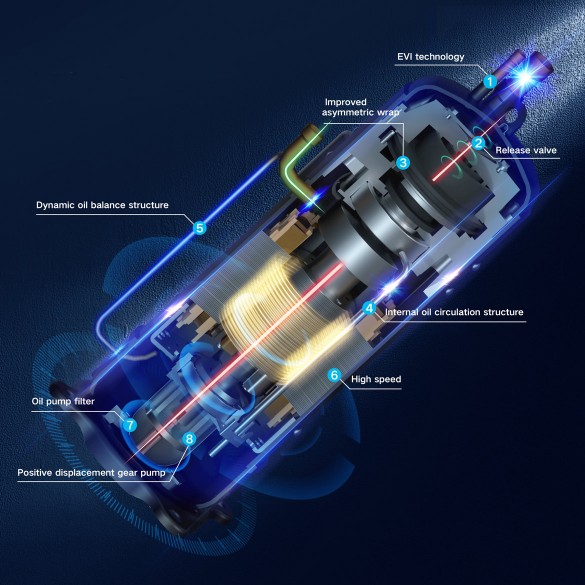

High Efficiency EVI Scroll Type DC Inverter High Pressure Cavity Compressor

1. High-Efficiency EVI Control Technology

The high-efficiency EVI compressor was developed according to the VRF unit's requirements. Its 0~0420Hz adjustable range perfectly matches the entire unit, enhancing performance to the greatest extent.

2. Release Valve

Improving partial load energy, adapting to the condition of the variable pressure ratio, and upgrading compressor performance.

3. Improved Asymmetric Wrap

A new asymmetric wrap is adopted, and compressor efficiency is improved by reducing internal leakage and invalid superheat.

4. Internal Oil Circulation Structure

Internal circulation of lubricating oil to reduce over-heat losses and oil discharge rate and to improve efficiency and reliability

5. Dynamic Oil Balance Structure

Advanced oil balance technology, with high reliability and flexible design without installation limit, can realise parallel connections of compressors with different delivery capacities and revolving speeds.

6. High Speed

0~420Hz stepless inverter operation, the wide adjustment range of capacity with precision of 1Hz.

7. Oil Pump Filter

Filtration of any impurities to ensure that the oil supplied is clean.

8. Positive Displacement Gear Pump

Ensures the necessary oil supply regardless of the compressor's revolving speed and improves the reliability of the compressor.

High Efficiency EVI Scroll Type DC Inverter High Pressure Cavity Compressor

Inverter Build with All DC Inverter Technology

High energy efficiency, large air volume, low-noise fan blade, Multiple Prevention Technologies (corrosion prevention, lightning prevention, dust prevention, wind prevention), CAN+ Communication Technology, Intelligent control and management, Clean and healthy fresh air.

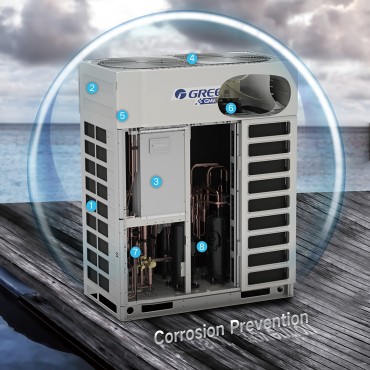

Multiple Prevention Technologies

Protecting the unit from corrosion, duct, wind, lightning, and snow prolongs its service life and suits different environmental conditions.

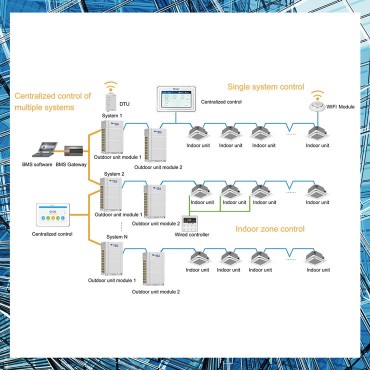

Innovative Stratification CAN+ Structure with Multiple Master Networks

Considering that the application of an air conditioning system requires multiple nodes, multistep control, and intelligent expansion, we originally developed the stratification CAN+ structure with multiple master networks. This structure allows the number of nodes in a single system to be increased relatively by 56% and the response time for centralized control to be shortened by hundreds of times.

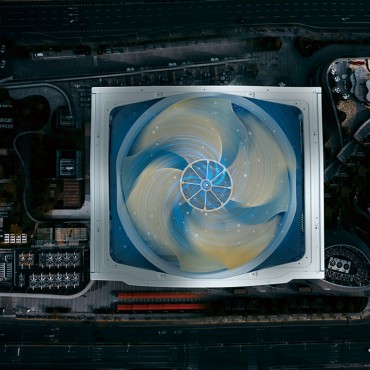

Large Air Volume, Low Noise Fan Blade

GMV6 outdoor units come with a brushless DC inverter fan motor with speed adjustment from 5 to 85Hz in 1Hz increments.

Connected to the new Reverse “S” tail designed fan blade and a new grille design, the GMV6 outdoor airflow has increased by 16%.

The outdoor fan is also rated at 110Pa to allow the fitting of a diversion cover. It has a wind prevention function and can run backward to blow dust and dirt from the outdoor heat exchanger.

Innovative Stratification CAN+ Structure with Multiple Master Networks

When we consider the application of an air conditioning system, which requires multiple nodes, multistep control and intelligent expansion, traditional network structures are limited.

Gree have developed the stratification CAN+ structure with multiple master networks to improve this.

This makes it possible to increase the number of nodes in a single system by 56% and shorten the communication cycle, the preferential and centralised control response times, to seconds.
